Liyi ASTM-B117 Corrosion Resistance Salt Spray Test Chamber with 108L~1000L Capacity and IP56 Protection Class

Brand Name : LIYI

Place of Origin : Guangdong, China

MOQ : 1

Accuracy : NSS.ACSS 35°C±1°C/CASS 50°C±1°C

Power : 2KW

Protection Class : IP56

Voltage : 220 V, 380 V, 240 V, 110 V

Test chamber Temperature : NSS.ACSS 35°C±1°C/CASS 50°C±1°C

Saturated air Temperature : NSS.ACSS 47°C±1°C/CASS 63°C±1°C

Test chamber capacity : 108L~1000L

Display : Color LCD Display/ touch screen

Test chamber size : 60*45*40 cm, 90*60*50 cm, 120*100*50 cm, 200*120*60 cm

Max liquid capacity : 15L, 25L, 40L, 40L

Outside volume : 107*60*118 cm, 141*88*128 cm, 190*130*140 cm, 270*150*150 cm

Power supply : AC220V,10A, AC220V,15A, AC220V,30A

Model : LY-609-60, LY-609-90, LY-609-120, LY-609-200

Design standard : GB/T 10587-2006, GB/T 10125-1997, JIS-D0201, H8502, H8610, K5400, Z2371

Test chamber capacity (L) : 108L, 270L, 600L, 1440L

Contact Now

Liyi ASTM-B117 Corrosion Resistance Machine Spray Solar Panel Salt Mist Aging Testing Chamber
Product Description
Liyi salt spray test machine can determine the corrosion resistance of iron metal or the iron metal inorganic film or organic film test, such as: electroplating, anode processing, conversion coating, painting, ect.

Liyi salt spray test machine is an accelerated corrosion test that produces a corrosive attack to the coated samples in order to predict its suitability in use as a protective finish. The appearance of corrosion products (oxides) is evaluated after a period of time. Test duration depends on the corrosion resistance of the coating; the more corrosion resistant the coating is, the longer the period in testing without showing signs of corrosion. Different coatings have different behaviour in salt spray test and
consequently, test duration will differ from one type of coating to another.
Specifications
Model
LY-609-60
LY-609-90
LY-609-120
LY-609-200
Design standard
GB/T 10587-2006, GB/T 10125-1997,
JIS-D0201, H8502, H8610, K5400, Z2371
Test chamber capacity(L)
108L
270L
600L
1440L
Temperature
Test chamber
NSS.ACSS 35°C±1°C/CASS 50°C±1°C
Saturated air cylinder
NSS.ACSS 47°C±1°C/CASS 63°C±1°C
Test chamber size
L×W×D(cm)
60*45*40
90*60*50
120*100*50
200*120*60
Max capacity of test liquid(L)
15
25
40
40
Outside volume L×W×D(cm)
107*60*118
141*88*128
190*130*140
270*150*150
Power
AC220V,10A
AC220V,15A
AC220V, 30A
AC220V, 30A

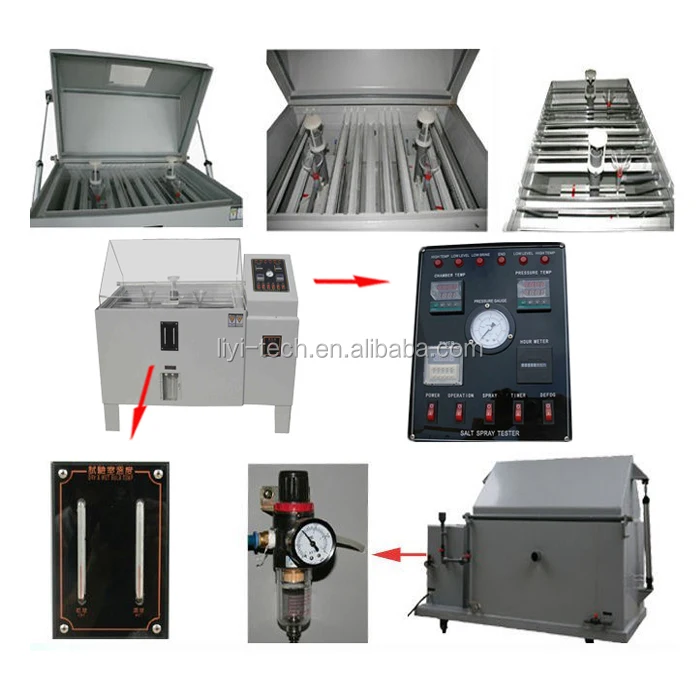

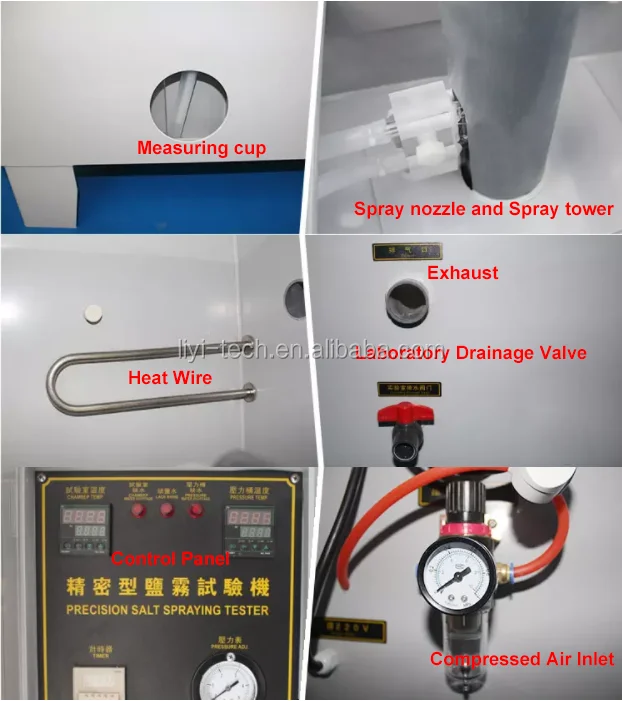

Products Detail
Liyi ASTM-B117 Corrosion Resistance Salt Spray Test Chamber with 108L~1000L Capacity and IP56 Protection Class
Liyi ASTM-B117 Corrosion Resistance Salt Spray Test Chamber with 108L~1000L Capacity and IP56 Protection Class
Liyi ASTM-B117 Corrosion Resistance Salt Spray Test Chamber with 108L~1000L Capacity and IP56 Protection Class
Liyi ASTM-B117 Corrosion Resistance Salt Spray Test Chamber with 108L~1000L Capacity and IP56 Protection Class
Recommend Products
Company Profile
Dongguan Liyi Environmental Technology Co., Ltd is a high technology supported production-oriented enterprise who specializes in developing, manufacturing, marketing all kinds of environmental equipment. Our company has advanced technology, experienced technical management personnel and efficient professional service staffs, fine quality management and perfect after-sales service system.

Our company mainly produce simulated environmental tester, plastic and rubber tester etc. on all kinds of materials testing industries. The production base is located in the country’s manufacturing center Dongguan, Guangdong province, China. In order to service our customers better in terms of reducing costs and early delivery, in 2005 we had set up an office in Kunshan, Jiangsu province for Eastern China marketing and servicing.

Liyi deals with customers from more than 150 countries and regions. Meanwhile, we are committed to cooperate with different dealers in different countries and regions in order to offer better service. Our mission is to help every customers establish testing labs to ensure the quality of their products.

Our company will continue to develop, innovate and keep faith. We combine with the international testing standards and the specific demands of customers that may establish a new banner in Chinese testing industry.
Liyi ASTM-B117 Corrosion Resistance Salt Spray Test Chamber with 108L~1000L Capacity and IP56 Protection Class
FAQ
1. Are you Manufacturer?Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are the one of professional and biggest Manufacturer like Environmental Chambers, Industrial Ovens, Universal Tensile Testers, UV Aging Test Chambers, Industrial Muffle Furnaces, Paper Packing Testers, Plastic Rubber Testers, Adhesive testers and other testing Equipment.. in China .Every machines purchasing from our factory has 12 months warranty after shipment. Generally, we offer 12 months for the FREE maintenance. while considering of sea transportation,we can extend 2 months for our customers.

Moreover, If your machine doesn’t work, you can send us an E-mail or call us we will try our best to find the problem through our conversation or by video chat if neccesary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.

2. What’s the delivery term?
For our standard machine which means normal machines, we have stock in the warehouse. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt ( this is only for our standard machines) If you are in urgent need, we will making a special arrangement for you.

3. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.

4.How can I install and use the machine?
Once you have ordered the testing machines from us, we will send you the operation video in English version through Email.
Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use. And if it's necessary, we can also assist you to install your machine on site.
Liyi ASTM-B117 Corrosion Resistance Salt Spray Test Chamber with 108L~1000L Capacity and IP56 Protection Class
