Liyi IPX1~4 IP Resistance Tester Waterproof Test Rain Spray Test Equipment

Brand Name : LIYI

Place of Origin : Guangdong, China

Model Number : LIYI

MOQ : 1

Test method : IPX1, IPX2, IPX3, IPX4

Controller type : English touch screen

Swiping pipe size : R400mm/500mm/600mm

Sample shelf size : D700mm

Dripping board size : 1000*1000mm

Internal dimensions : 900*900*900 D*W*H

Overall dimensions : 1120*1460*1660 D*W*H

Oscillating tube radius : 400mm

Spraying hole diameter : φ0.4mm

Hole spacing : 50 mm

Oscillating tube range : ±45°, ±60°, ±90°, ±180°

Turntable rotation speed : 1r/min

Water pressure control : Flow meter

Interior material : SUS304 Stainless steel

Power Supply : 380V, 50HZ

Contact Now

Liyi IPX1~4 IP Resistance Tester Waterproof Test Rain Spray Test Equipment
Product Description
Liyi ip test equipment is according to IEC60529, IEC 60598, GB2423.37-89 (Test L:dust test methods), GB 4208-93 protective casing grade (IP code), GB/T 4942.2-93(protective casing grade of low-voltage apparatus), GB 7000.1-1996, GB 7001-1986(protective casing grade of lamps), DIN40050 and IP5K0. The XB-OTS-IP65X is applied in LED or other luminaries for IP5X and IP6X test.
Specifications
Product name
Liyi ip test equipment
Internal dimensions(mm)
900*900*900 D*W*H(customized)
Overall dimensions(mm)
1120*1460*1660 D*W*H(customized)
Oscillating tube radius
400mm
Spraying hole diameter
φ0.4mm
Hole spacing
50 mm
Oscillating tube range
±45°, ±60°, ±90°, ±180°(theoretical value)
Turntable rotation speed
1r/min, or steeples speed regulating (optional)
Controller
Programmable color display touch screen controller, PC Link with software, R-232 interface
Water pressure control
Flow meter
Observation window
Large viewing window with wiper
Water supply system
Storage water tank, booster pump, Automatic water supply, Water purification system, Water saving
Safety protection device
Electric leakage, short circuit, motor overheating, over-current protection
Interior material
SUS304 Stainless steel
Exterior material
Steel plate with protective coating
Power Supply
380V, 50HZ
Standard
ISO 20653, IEC 60529

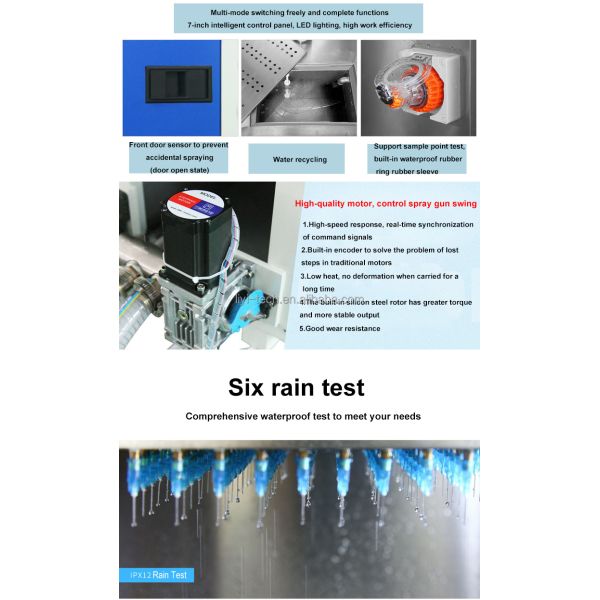

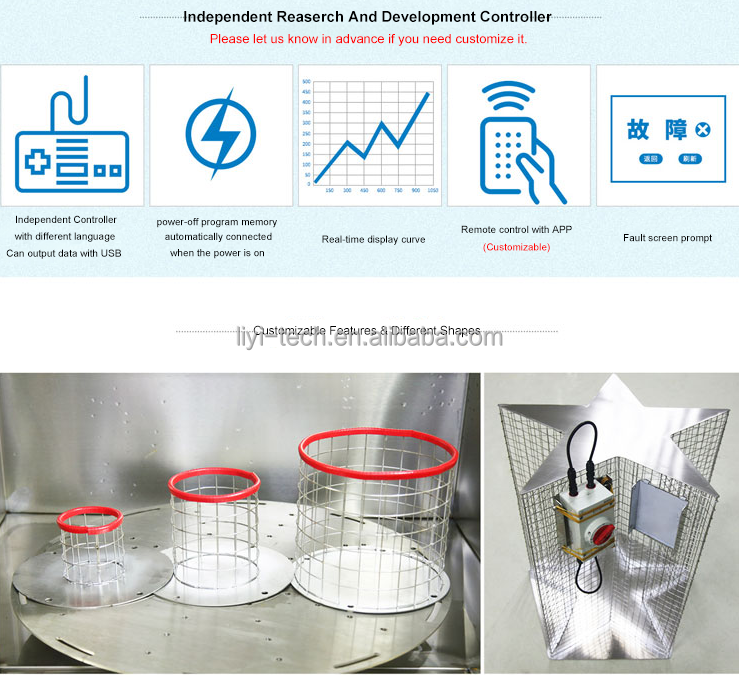

Products Detail
Liyi IPX1~4 IP Resistance Tester Waterproof Test Rain Spray Test Equipment
Liyi IPX1~4 IP Resistance Tester Waterproof Test Rain Spray Test Equipment
Liyi IPX1~4 IP Resistance Tester Waterproof Test Rain Spray Test Equipment
Liyi IPX1~4 IP Resistance Tester Waterproof Test Rain Spray Test Equipment
